Basalt Fiber Fabric

Attributes
Reinforcement Yarn(Warp): 300Tex
Reinforcement Yarn(Weft): 300Tex
Wave: Plain
Fiber Count(10mm)Warp: 5
Fiber Count(10mm)Weft: 5
Weight: 300G/SQ.M
Thickness: 0.32mm
Width: 100-1500mm

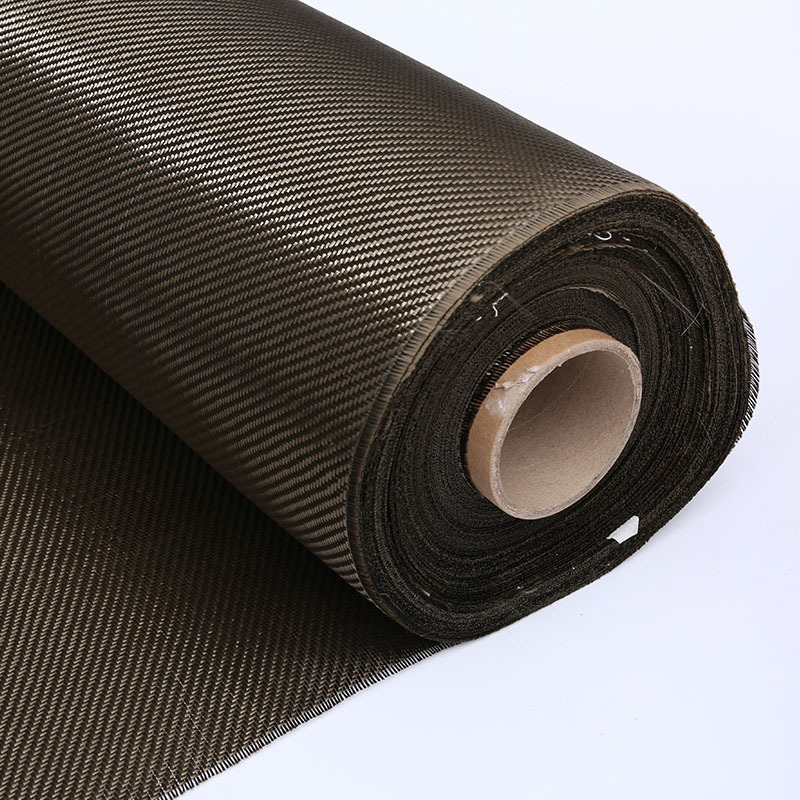

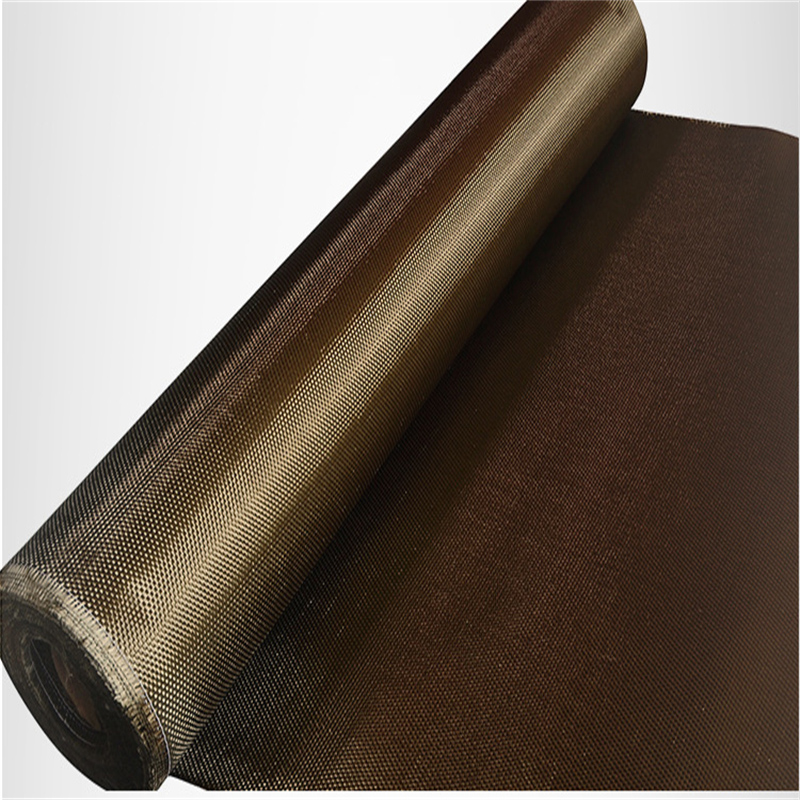

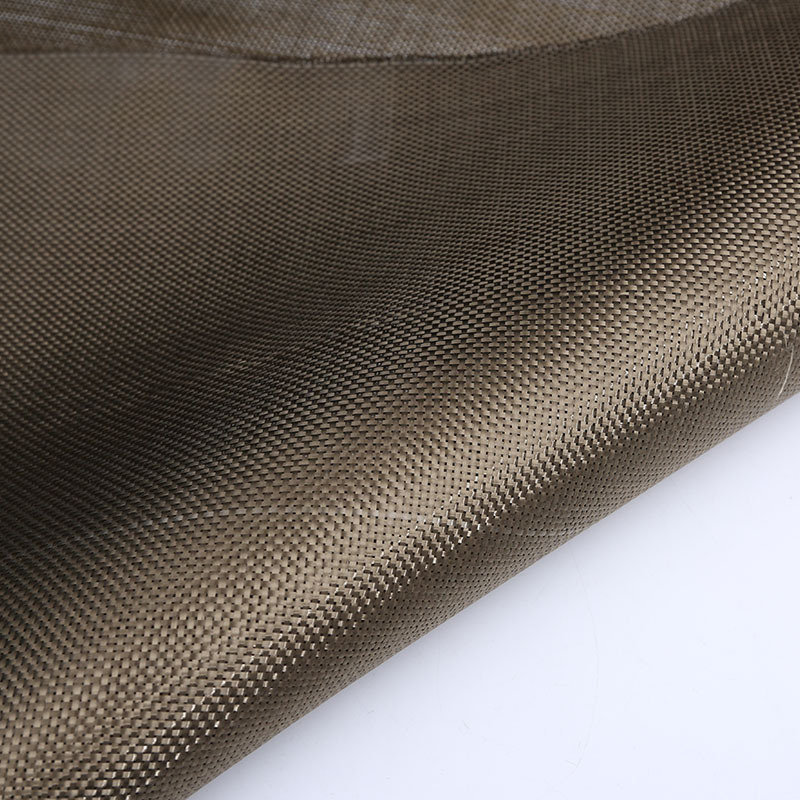

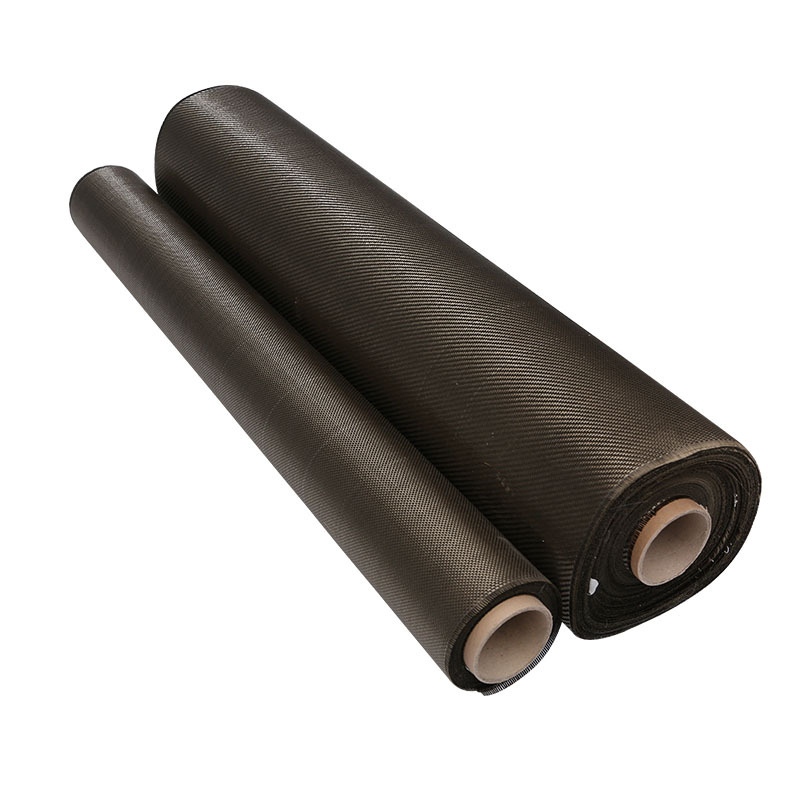

Basalt fiber fabric is weaved by basalt fiber yan in plain,twill,satin structure. It is a higher tensile strength materials compare to fiberglass,although a bit weaver than carbon fiberit’s still a good alternative because of its low price and eco-friendlinessbesides basalt fiber has its own advantages so that it can be used in heat protection,friction, filament winding, marine, sports and construction reinforcements.

Application:

l  Fiber-reinforced composite materials, friction materials

l  Shipbuilding materials,aerospace, insulation materials

l  Automotive industry,high temperature filtration fabrics, etc

Specification:

Style

Reinforcement Yarn

Wave

Fiber Count(10mm)

Weight

Thickness

Width

Warp

Weft

Warp

Weft

(G/SQ.M)

(mm)

(mm)

BJP130

80tex

80tex

Plain

8

8

130

0.16

100-1500

BJT130

80tex

80tex

Twill

8

8

130

0.16

100-1500

BJP145

80tex

80tex

Plain

9

9

145

0.18

100-1500

BJT 145

80tex

80tex

Twill

9

9

145

0.18

100-1500

BJP160

80tex

80tex

Plain

10

10

160

0.2

100-1500

BJT160

80tex

80tex

Twill

10

10

160

0.2

100-1500

BJP300

300tex

300tex

Plain

5

5

300

0.32

100-1500

BJT300

300tex

300tex

Twill

5

5

300

0.32

100-1500

BJP360

300tex

300tex

Plain

6

6

360

0.34

100-1500

BJT360

300tex

300tex

Twill

6

6

360

0.34

100-1500

BJP420

300tex

300tex

Plain

7

7

420

0.36

100-1500

BJT420

300tex

300tex

Twill

7

7

420

0.36

100-1500

BJP560

800tex

800tex

Plain

3.5

3.5

560

0.55

100-1500

BJT560

800tex

800tex

Twill

3.5

3.5

560

0.55

100-1500

BJP640

800tex

800tex

Plain

4

4

640

0.65

100-1500

BJT640

800tex

800tex

Twill

4

4

640

0.65

100-1500

BJP800

1320tex

1320tex

Plain

3

3

800

0.8

100-1500

BJT800

1320tex

1320tex

Twill

3

3

800

0.8

100-1500

BJP1000

1320tex

1320tex

Plain

4

4

1000

0.9

100-1500

BJT1000

1320tex

1320tex

Twill

4

4

1000

0.9

100-1500

*Specific products could be made according to customers’requirements.
