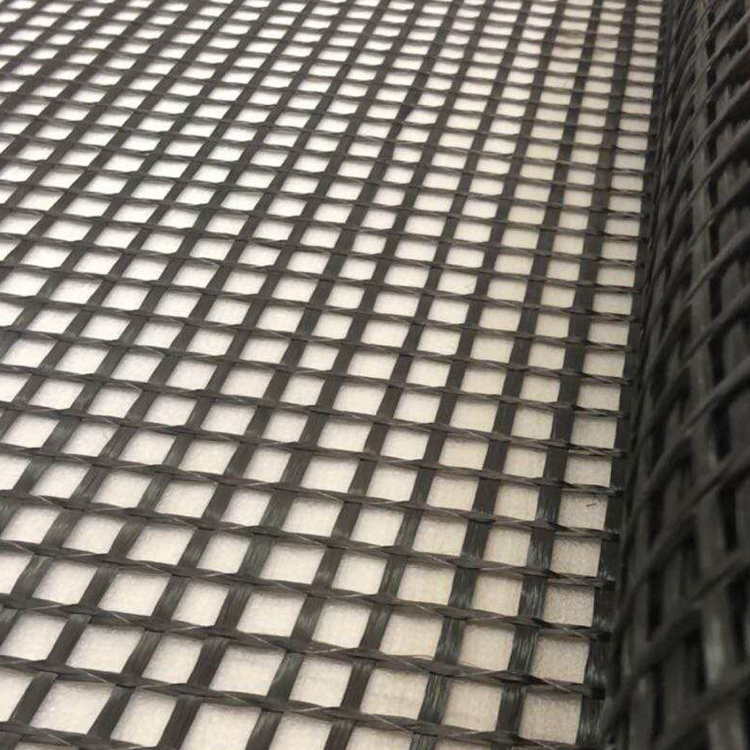

Carbon Fiber Geogrid

Attributes
Color: Black
Application: Road Construction .mine Laneway

Carbon fiber geogrid is a special weaving process weaving, after coating technology to deal with a new type of carbon fiber reinforced materials, such weaving to minimize the process of weaving the strength of carbon fiber damage, coating technology to ensure that the carbon fiber mesh and Mortar between the grip force.

Features:

Fire, breathable, resistant to moisture, durable

Technical Data:

Item

Unidirectional Carbon   fiber geogrid

Bidirectional Carbon   fiber geogrid

Weight of the force-directed carbon fiber(g/sqm)

200

80

Thickness of the force-directed carbon fiber(mm)

0.111

0.044

Theoretical cross-sectional area of carbon   fiber(mm^2/m)

111

44

Carbon   fiber geogrid thickness(mm)

0.5

0.3

1.75% ultimate tensile stress at strain(KN/m)

500

200

GrId appearance parameters

Vertical: carbon fiber wire width≥4mm, spacing   17mm

Vertical and Horizontal bi-directional: carbon   fiber wire width≥2mm

Horizontal: glass fiber wire width≥2mm, spacing   20mm

Spacing 20mm

Each bundle of carbon fiber wire limits the   breaking load(N)

≥5800

≥3200
