Carbon Fiber Tube

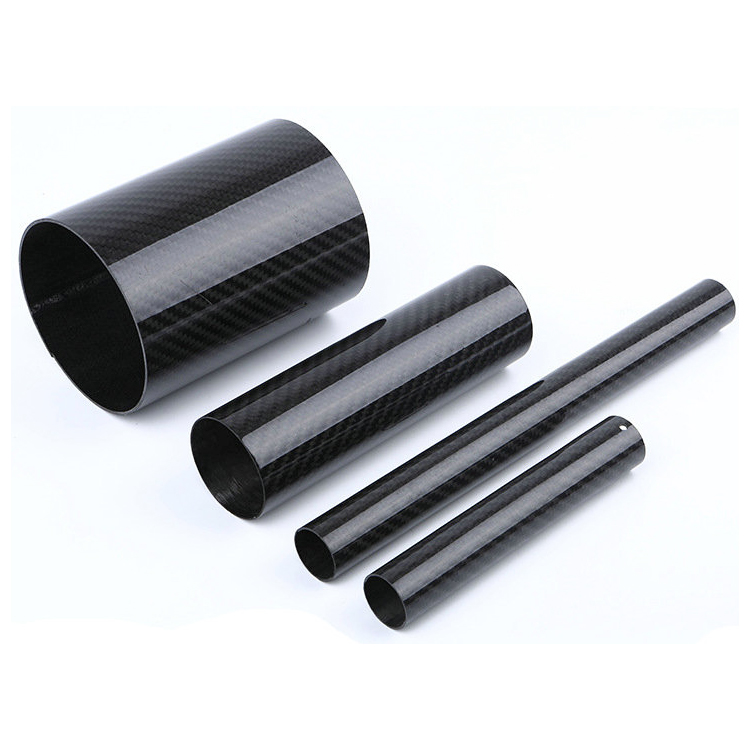

Carbon fiber tube is a cylindrical structure made from carbon fiber and a resin matrix, designed to combine the inherent strength, stiffness, and lightweight properties of carbon fiber with the shape and ease of use of a tube. These tubes are manufactured using various methods to align the carbon fibers in specific orientations that optimize the mechanical properties for intended applications.

Manufacturing Processes:

l  Roll Wrapping:

This process involves wrapping pre-impregnated carbon fiber sheets around a mandrel in specific orientations and then curing it, typically in an oven, to solidify the structure. The mandrel is removed after curing, leaving a hollow carbon fiber tube.

l  Pultrusion:

In this method, carbon fiber materials are pulled through a resin bath and then through a heated die, where the resin cures and the tube shape is formed. This process is efficient for producing tubes with constant cross-sections and is highly automated.

l  Filament Winding:

Carbon fibers are wound around a rotating mandrel in precise patterns, and resin is applied during or after the winding process. After curing, the mandrel is removed, producing a high-strength tube. This method allows for control over fiber orientation and is ideal for creating tubes with specific performance characteristics.

l  Braiding:

Carbon fibers are braided around a mandrel, and resin is applied to the braid either during or after the braiding process. This method provides excellent torsional strength and uniformity.

Feature:

l  High Strength and Stiffness:

Carbon fiber tubes offer superior strength and stiffness compared to metals like steel and aluminum, while being significantly lighter. This makes them ideal for applications where strength-to-weight ratio is critical.

l  Low Weight:

The lightweight nature of carbon fiber tubes makes them suitable for applications where reducing weight is essential for performance or energy efficiency.

l  Corrosion Resistance:

Unlike metals, carbon fiber does not corrode, making it suitable for use in harsh environments and applications where longevity and durability are important.

l  Customizable Properties:

By varying the carbon fiber lay-up, orientation, and manufacturing process, the mechanical properties of the tubes can be tailored to specific needs.

Application:

l  Aerospace:

Carbon fiber tubes find extensive use in aerospace applications for components such as aircraft frames, wings, and structural supports due to their lightweight and high strength properties.

l  Automotive:

They are used in automotive applications for roll cages, chassis components, drive shafts, and suspension parts to improve performance and reduce weight.

l  Marine:

Carbon fiber tubes are employed in marine applications for boat masts, hull reinforcements, and other structural components where corrosion resistance and high strength are essential.

l  Sports and Recreation:

They are used in various sports equipment such as bicycle frames, golf club shafts, fishing rods, and archery bows to enhance performance through lightweight construction and stiffness.

Specification:

Code

Length(mm)

Surface

Weave

KF312/3K-8x10

10-2400

Glossy/Matte

Plain/ Twill/ Uni-direction

KF312/3K-10x14

KF312/3K-12x14

KF312/3K-14x16

KF312/3K-16x18

KF312/3K-18x20

KF312/3K-20x24

KF312/3K-22x25

KF312/3K-24x26

KF312/3K-26x28

KF312/3K-28x30

KF312/3K-31x35

KF312/3K-34x38

KF312/3K-52x56

*Specific products could be made according to customers’requirements.
