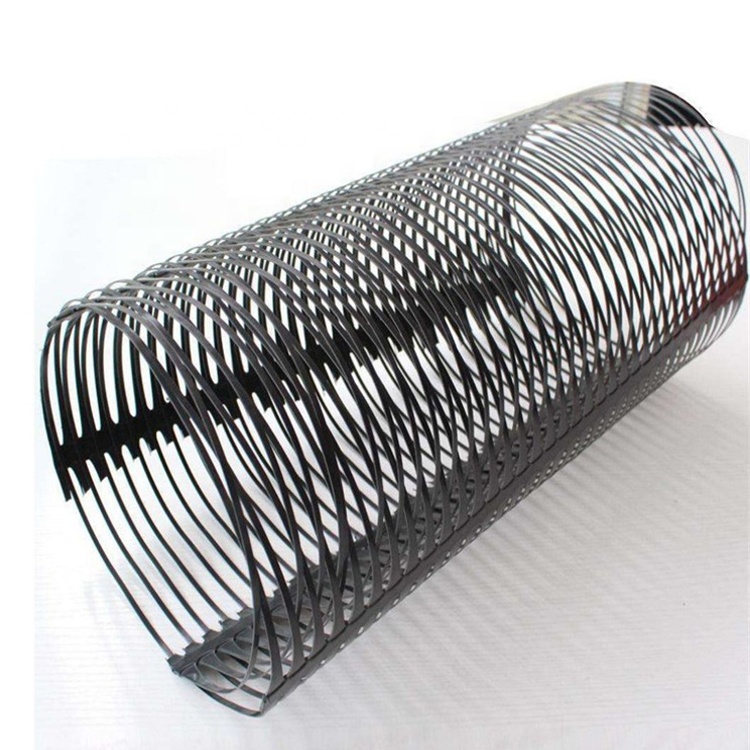

Polyester Uniaxial Geogrid

Attributes
Breaking Elongation: ≤13%
Grid Size: 25x25mm/40x40mm/50x50mm
Max. Width: 5.85m
Coating: PVC

Polyester geogrids are made of high strength, high modulus and low shrinkage polyester yarns. The yarns are coated with a PVC material to resist biological degradation. Polyester geogrids have a high resistance to creep.

Uniaxial grids are considerably stronger in one direction versus the other.

Application:

l  Segmental Retaining Walls (SRW)

l  Mechanically Stabilized Earth (MSE) Walls

Specification:

Product Code

PET60-30

PET160-30

PET350-30

PET400-50

PET1000-50

Breaking   Strength(kN/m)

MD

60

160

350

400

1000

Breaking   Strength(kN/m)

CD

30

30

30

50

50

Breaking   Elongation(%)

≤13

≤13

≤13

≤13

≤13

Grid   Size (mm X mm)

25x25 /   40x40 / 50x50

Max.   Width (m)

5.85

5.85

5.85

5.85

5.85

Coating

PVC

PVC

PVC

PVC

PVC

*Specific products could be made according to customers’requirements.
