Release Films

A2200 is a low cost, very flexible release film which is ideal for resin infusion processing.

Coloured opaque orange to allow resin front to be monitored during infusion plus aiding complete removal whilst de bagging.

Suitable for use with epoxy, polyester and vinylester resins although we strongly advise that a test piece is produced prior to committing to a full scale infusion in order to determine compatibility and performance meet desired standards.

Two standard perforation patterns available(others available on request): P16: Very fast resin transfer. Ideal in applications where film needs to be overlappedon the laminate where resin flow can be restricted due to closing off of perforations.

Nominal hole diameter0.5mm.

P31: Fast resin transfer. A standard perforation style for resin infusion.

Nominal hole diameter0.8mm.

Physical Properties:

Maximum Use Temperature

120℃

Colour

Orange

Thickness

P16.P31

 Availability& Packaging:

Thickness

25μ

Standard   Widths

600m

Standard   Roll Length

1.30m

 Storage& Handling:

l  Store in original packaging

l  No handling problems experienced

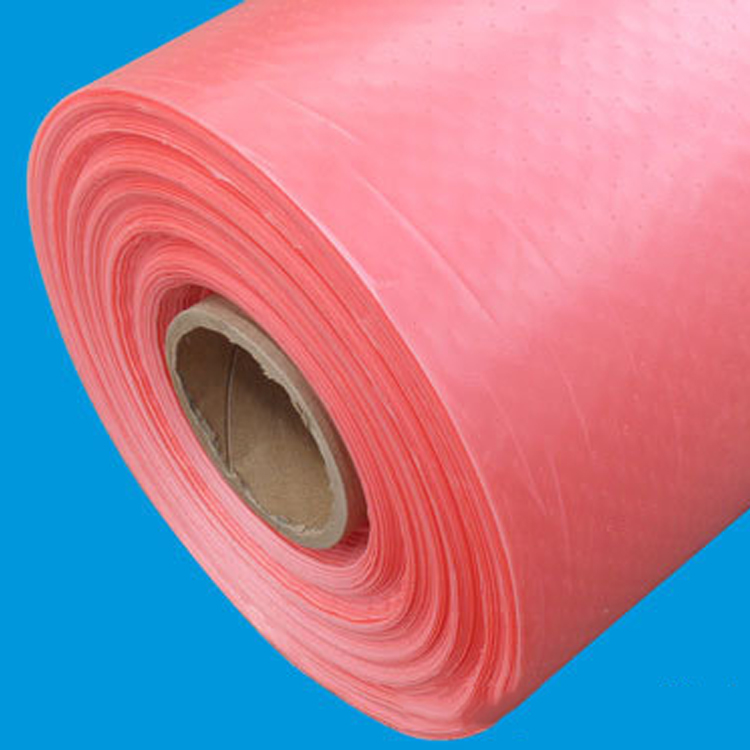

A2000 is an inexpensive release film, mainly used during the processing of flat or simple curvature components.

Exhibits excellent release characteristics from all commonly used resin systems. Available coloured red for ease of identification on the cured laminate.


Physical Properties:

Maximum Use Temperature

155℃

Colour

Red

Perforations

P3,P6 and P31

Density

0.955g/cm3

Elongation at break

>400%

 Availability& Packaging:

Thickness

30μ, 50μ

Yield

30μ---37.00m2/kg

Yield

 50μ---24.600m2/kg

Roll Standard

500mx1.5m wide

Storage& Handling:

l  Store in original packaging

l  No handling problems experienced
