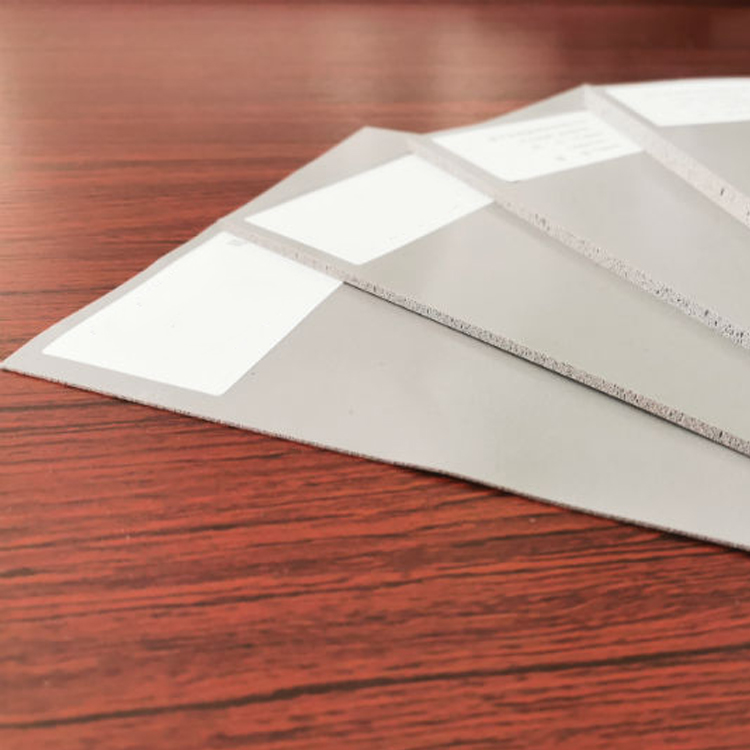

Silicone Foam Sheet

Attributes
Thickness: 0.8mm-30mm
Width: 500mm
Length: 5m/6m/10m/12m

Description:

TE-800H is a kind of silicone foam material with medium stress, which has excellent compression and permanent deformation resistance. Compared with traditional carbon foam material, the material has excellent high and low temperature resistance, stable operation in (-60°C-200°C), temperature range, high flame retardant(V-0) and very low smoke concentration.

Application:

In addition, the material has excellent aging resistance and weather resistance, and is an ideal material for all kinds of high-performance sealing, shock absorption, support, sound insulation, protection, insulation and fire protection.

Specification:

Thickness

Width

Length

0.8-3mm

500mm 960mm(Max)

12m

4-6mm

500mm 600mm(Max)

10m

9-12mm

500mm 600mm(Max)

6m

13-18mm

500mm

6m

19-25mm

500mm

5m

26-30mm

300mm

5m

*Specific products could be made according to customers’requirements.

Technical Data:

Test Item

Unit

Test Method

Value

Appearance

/

/

Black

Density

g/cm-3

ASTM D 1056

0.36±0.03

Compression Pressure.25%

Kpa

ASTM D 1056

65±10

Compression Set

%

ASTM D 1056

≤5.0

Tensile Strength

Mpa

GB/T 528-2009

≥0.3

Elongation

%

GB/T 528-2009

≥80

Water Absorption

%

ASTM D 570

≤5.0

Environmental Protection Test

/

ROHS

Qualified

Flame Spread

/

ASTM E162

Qualified

Smokescope

/

ASTM E662-2015

Qualified

Toxic Gas

/

SMP 800-C-2009

Qualified

Low Temperature Bending

/

ASTM D 1056

-55°C Qualified

Dielectric Strength

KV/mm

GB/T 1695-2005

≥2.5

Electrical Resistivity

Ω.cm

GB/T 1695-2005

≥1.0*1015

Flame Retardancy

/

UL94-2013

V-0

Thermal Conductivity

W/(m.k)

ASTM D 5930

0.07
