Tadpole Gasket Tape

Attributes
Thickness: 1.6mm-5.0mm
Overall Width: 20mm-300mm
Bulb Diameter: 10mm-30mm
Packing: 25m or 30m/roll

Tadpole Gasket Tapes are designed to provide high temperature thermal seals in industrial, laboratory, commercial and industrial ovens and dryers. Constructed from fiberglass, silica, ceramic, or tacky cloth, our Tadpole Gasket Tape provides a high temperature thermal seal for a range of environments and temperatures.

Application:

Tadpole gasket tapes are used in a varity of sealing and gasketing applications. They offer easy mounting-the tail can be held in place with grab bars or strips, mechanical fasteners with backing washers, or in some applications adhesively.

Materials:

l  Ceramic Fiber/ Amorphous Silica/ Type E Fiberglass/ Type 304 Stainless Steel/

l  Coatings: Vermiculite, Silicone, PTFE

l  Cores: 304 Stainless Steel, Inconel Mesh

Construction:

l  Core: Stainless steel (hollow or solid), Inconel, Fiberglass, Silica, Ceramic

l  Cover: Fiberglass, Silica, Silicone, Ceramic, Tacky Cloth

Recommended Operating Temperature:

l  500°F (260°C)-Silicone, PTFE, Tacky Cloth

l  1000°F (540°C)-Fiberglass

l  1500°F (815°C)-Vermiculite

l  1800°F (980°C)-Silica

l  2300°F (1260°C)-Ceramic

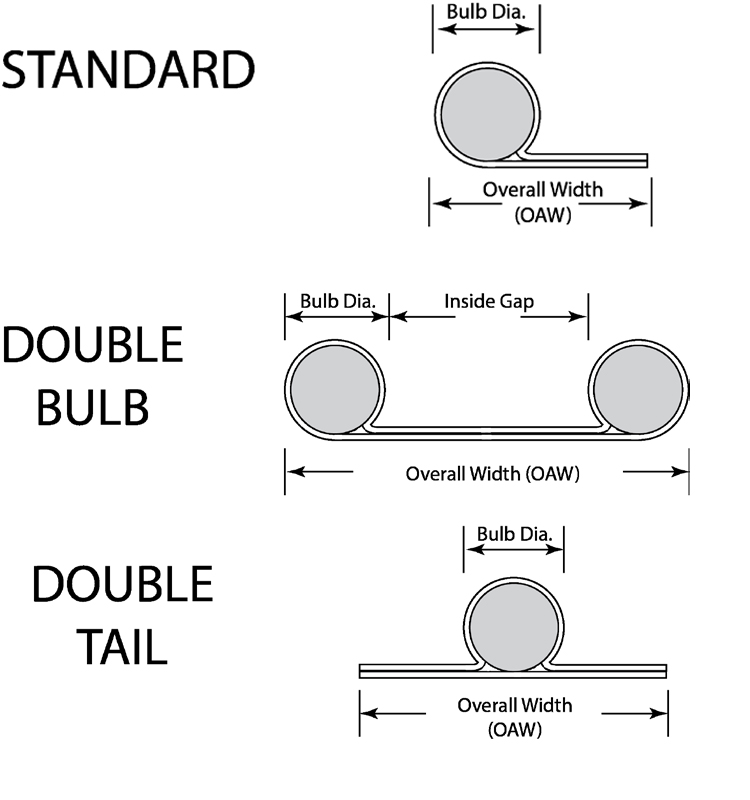

Specification:

Thickness

Overall Width

Bulb Diameter

Packing

1.6mm-5.0mm

20mm-300mm

10mm-30mm

25m or 30m/roll

*Specific products could be made according to customers’requirements.
