Aluminum Foil Tape

This product is made from high-strength flexible pure aluminum foil, high-performance pressure sensitive adhesive, as well as single-sided polyethylene coating and silicone release paper. It utilizes three basic types of adhesive solutions, including: solvent-based acrylic adhesive, emulsion-based acrylic adhesive and synthetic rubber adhesive. According to different structures, our product can be divided into three major types, including: ordinary pure aluminum foil tape, aluminum foil tape without lining paper, reinforced (composite substrate) aluminum foil tape. It has found a wide application in numerous industries.


Application:

l  Aluminum Foil Tape With Lining:

The product is applicable to sticking the seams of aluminum foil composite, the sealing at the puncture of insulation nail and the repair at the damaged part; heat preservation and water vapor sealing of various insulation wool boards, pipes and air hoses; sticking and fixation of refrigerators, freezers and other household appliances.

l  Aluminum Foil Tape Without Lining:

High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application.

l  Reinforced Composite Aluminum Foil Tape:

The product is mainly applied to the sealing of air hose of glass wool board and galvanized iron air hose as well as to sealing the seam and port of aluminum foil veneering.

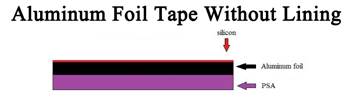

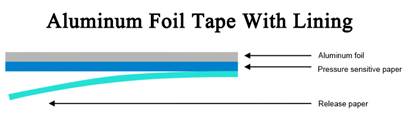

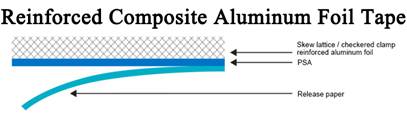

Structure Of Adhesive Tape:


Type Of Adhesive:

l  Aluminum foil tape with lining:

 Emulsive polyacrylate PSA, Solvent polyacrylate PSA

l  Aluminum foil tape without lining:

A high performance water based acrylic

l  Reinforced composite aluminum foil tape:

Emulsive polyacrylate PSA, Solvent polyacrylate PSA

Aluminum Foil:

l  Aluminum foil tape with lining:

State of alloy:8011 O Thickness: 15mic - 100mic

l  Aluminum foil tape without lining:

Aluminum foil,alloy: 8011 O

l  Reinforced composite aluminum foil tape:

Skew lattice / checkered clamp reinforced aluminum foil

Release Paper:

l  Aluminum foil tape with lining:

white / yellow / kraft paper of natural color; single-face PE coating; coating solvent organic silicone oil

l  Aluminum foil tape without lining:

white / yellow / kraft paper of natural color; single-face PE coating; coating solvent organic silicone oil

l  Reinforced composite aluminum foil tape:

white / yellow / kraft paper of natural color; single-face PE coating; coating solvent organic silicone oil

Specification And Dimension:

Mother coil: 1000mm*1350m,1000mm*1200m,1200mm*1350m,1200mm*1200m

The specific width and length of cutting products can be customized according to customer requirements.

Technical Parameters:

Aluminum Foil Tape With Lining

Type of product

Thickness of aluminum foil(mic)

Type of adhesive

Peel strength (N/25mm)

Enduring viscous force (min)

Initial viscous force (mm)

AF-01E**

15~100

Water-borne acrylate PSA

≥12

≥1440

≤100

AF-01S**

18~100

Solvent acrylate PSA

≥18

≥1440

≤100


Aluminum foil tape without lining

Type of product

Thickness of aluminum foil(mic)

Type of adhesive

Peel strength (N/25mm)

Enduring viscous force (min)

Initial viscous force (mm)

AF-02E**

26~100

Water-borne acrylate PSA

≥12

≥1440

≤100

AF-02S**

26~100

Solvent acrylate PSA

≥18

≥1440

≤100

AF-02R

40,50

synthetic rubber adhesive

≥18

≥1440

≤100

Reinforced Composite Aluminum Foil Tape

Type of product

Type of adhesive

Peel strength (N/25mm)

Initial viscous force (mm)

FSK-01E

Water-borne acrylate PSA

≥12

≤100

FSK-01S

Solvent acrylate PSA

≥18

≤100

* Other special performance needs can be customized according to customer needs
